Electric Radiant HeatProjectors
More Heat! A lot more.
Precision heat from distance
Low operating cost
Smaller carbon footprint
Super-efficient
Our high-efficiency electric heat “projector” concentrates heat into a beam that is up to 5x stronger than conventional heaters. The result is a huge increase in delivered heat and much lower operating costs. The HeatProjector easily outperforms other electric and propane heaters.
Precision Heat from distance
The innovative compound reflective lens enables the electric HeatProjector to deliver comfort heat from distances up to 18 feet, and in predictable patterns and temperature increases. Surface temperatures can be increased 40F+ above air temperature.
Smaller carbon footprint
Propane heaters are dirty and high-power electric heaters are inefficient. Radiant Optics’ HeatProjectors produce less than 1/4 of the greenhouse gases per BTU of propane heaters and 1/5 that of electric IR heaters.
HeatProjector Electric
Radiant Optics Propane High-power
3 Electric Models to choose from: e3750, e7500 and e15000
- all with a 5x heat focusing lens
- available in many voltages and mounting options

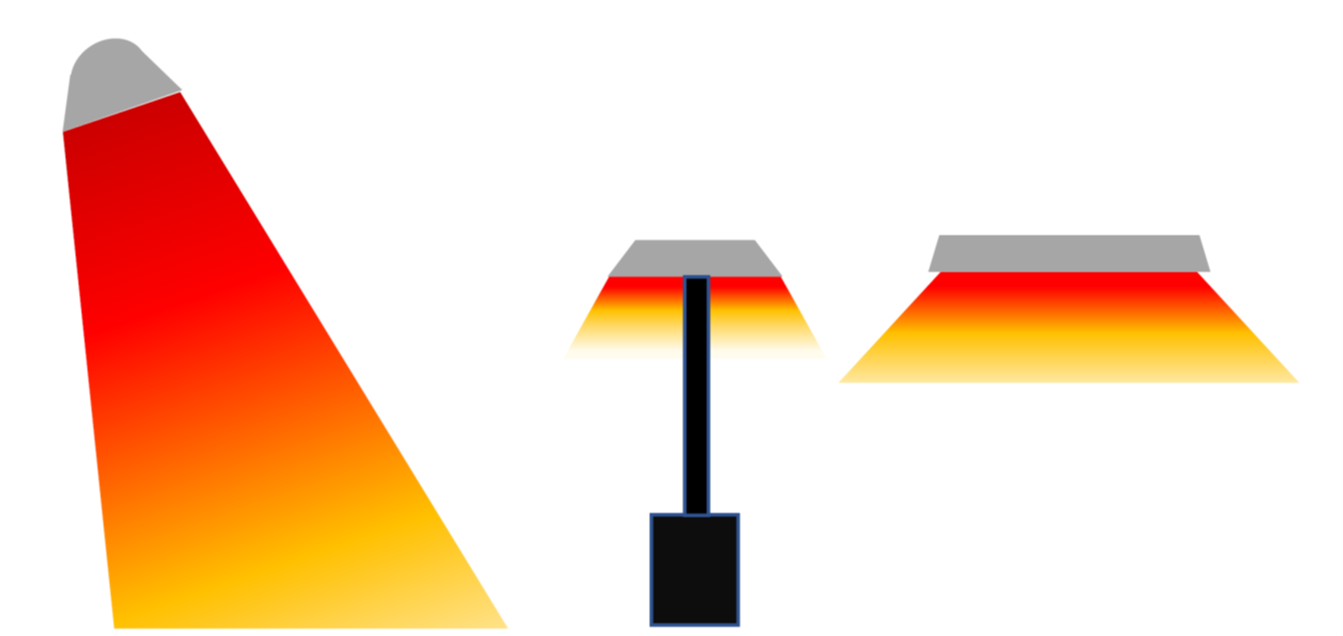

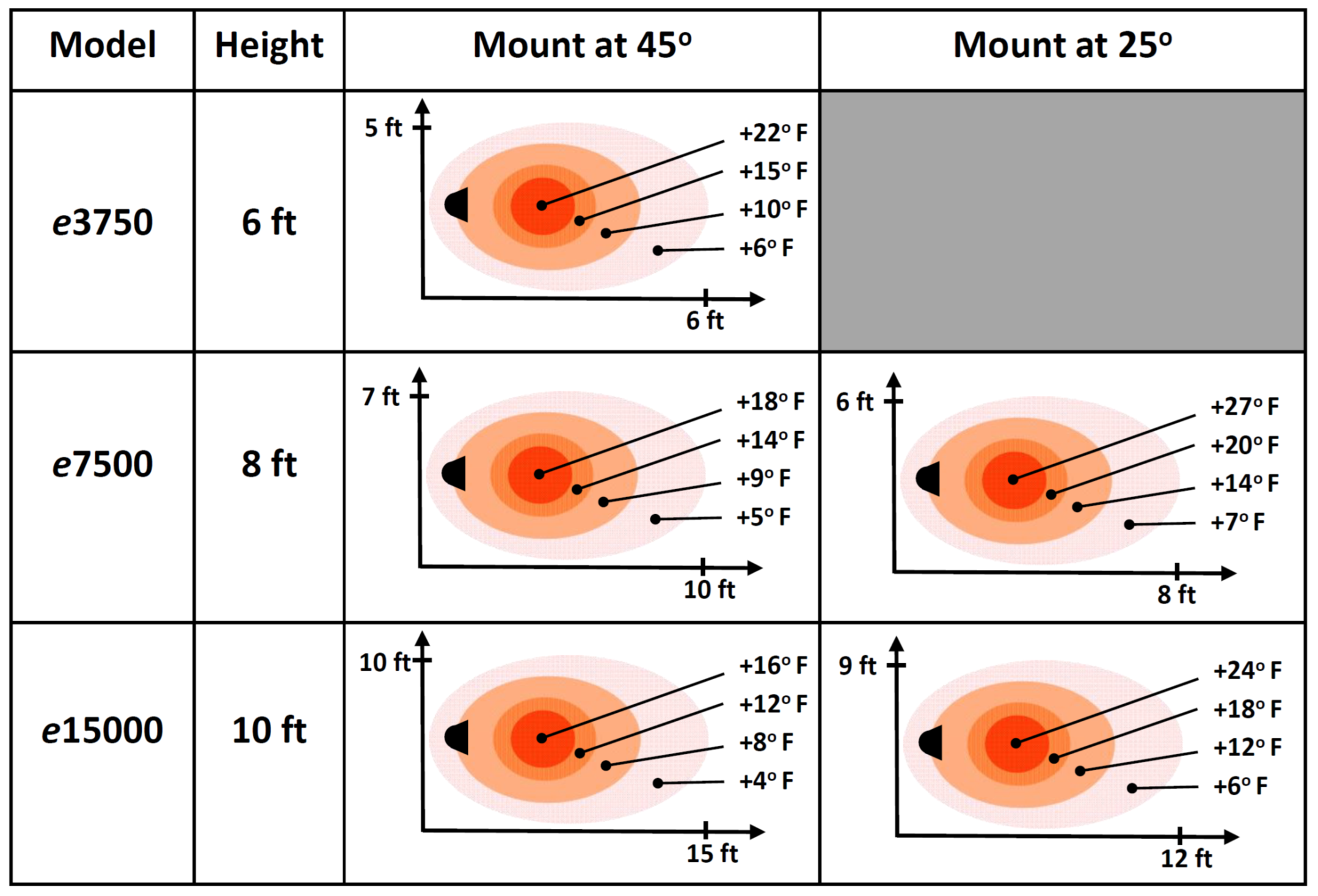

HeatProjectors produce predictable heat patterns
Installation tips
Recommended Installation height: e3750 6-8 ft e7500 8-10 ft e15000 10-13 ft
For more heat: use a smaller mounting angle and/or mount the heater lower. These result in a smaller heat footprint.
For a larger footprint: use a larger mounting angle and/or mount the heater higher. These result in lower temperature increases.
Overlapping heat maps from adjacent heaters are “additive”. For example, a 14 F zone overlapping a 7 F zone will yield +21 F
Mounting Options
Free Standing
e3750w or e7500w models mount on stand
Stainless steel stand 34” to 79”, foldable
Plugs in standard 120V outlet
Tip-over safety switch
For outdoor use, not included in ETL listing
Wall and Ceiling Mount
e7500w and e15000w models
Conduit mount, wall mount and yoke mount options
In Ceiling
e7500w and e15000w models
Flush Mount and Drop Mount options
